COMPACT HANDHELD SLAM SCANNER

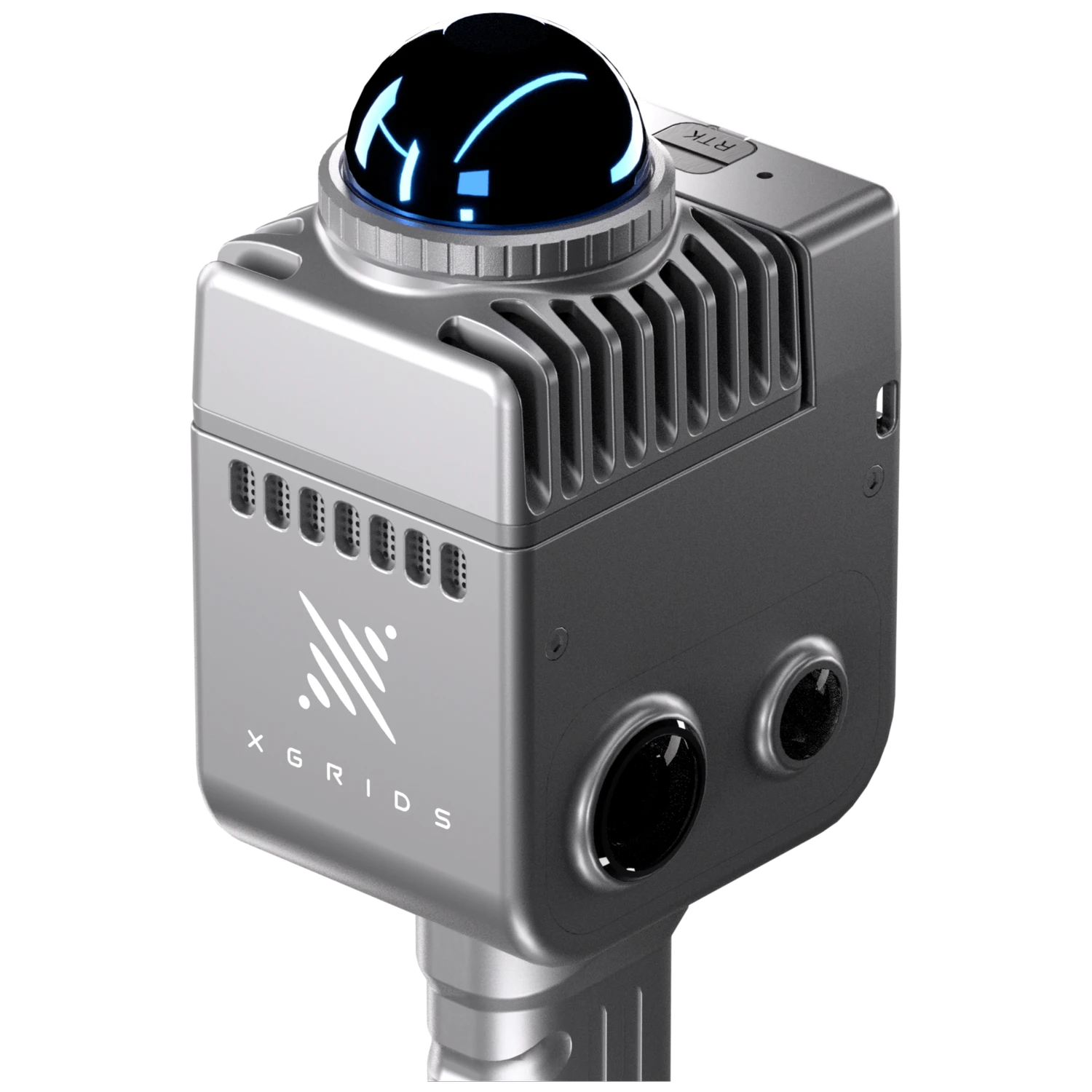

The LixelKity K1 is XGRIDS’ compact handheld SLAM scanner, pairing a 48 MP dual-camera panorama with LiDAR for fast, affordable colorized 3D capture.
points / second
working range
relative accuracy
weight
SPECIFICATIONS
LiDAR
Laser class
Class 1 / 905 nm
Working range
0.1–40 m @10% reflectivity; 70 m @80%
Field of view
360° × -7° to +52°
Scan speed
200,000 points/second
Accuracy
Relative accuracy
1.2 cm
Absolute accuracy
3 cm
Repeat accuracy
2 cm
Horizontal accuracy
0.015°
Vision
Camera
Color panorama HDV 360°×360°
Resolution
48 MP ×2 (max 56 MP panoramic)
Cameras / positioning
4 cameras · visual-aided positioning
System
RTK
Supported
Storage / connection
256 GB TF card · WiFi / Bluetooth
Power / battery
Fast-lock battery / external · 28.8 Wh · 1.5-hour runtime
Environment / housing
-20°C to 50°C · IP54 · navigational aluminum
Output
Colorized .las point cloud
HIGHLIGHTS
Compact
Under 1 kg for grab-and-go handheld scanning.
48 MP color
Dual 48 MP cameras deliver rich color point clouds.
RTK-ready
Supports RTK and visual-aided positioning for accuracy.
Approachable
The entry point into the XGRIDS SLAM ecosystem.
FAQ
What is the LixelKity K1?
The LixelKity K1 is XGRIDS’ compact handheld SLAM LiDAR scanner. Weighing under 1 kg, it captures 200,000 pts/s with 1.2 cm relative accuracy and a 48 MP ×2 color panorama.
What accuracy does the K1 achieve?
1.2 cm relative accuracy, 3 cm absolute, 2 cm repeat accuracy and 0.015° horizontal accuracy.
What is the K1’s range?
The LiDAR works from 0.1 m to 40 m at 10% reflectivity, and up to 70 m against 80%-reflective surfaces.
How is the K1 different from the K2?
The newer Lixel K2 tightens relative accuracy to 1 cm, adds built-in RTK and an aviation-grade body, and extends the maximum range to 100 m. The K1 remains the compact, more approachable option.
Does the K1 support RTK?
Yes, the K1 supports RTK and visual-aided positioning, and outputs colorized .las point clouds.
How much does the LixelKity K1 cost?
XGRIDS sells the K1 through authorized partners and its store rather than a fixed public price. Check current availability at the XGRIDS store.
